Unlock Superior EV & BESS Battery Safety with Thermal Vent Blankets

Thermal Runaway Protection Engineered For Your Battery Pack

Mitigating Thermal Runaway Events

Thermal runaway is triggered by an internal fault in a cell, overcharge or mechanical damage leading to a rapid spike in temperatures, sometimes to above 1,000°C in a fraction of a second, causing the cell to burst into flames.

To prevent spread to adjacent battery cells and protect vehicle occupants and surrounding infrastructure, it is critical to quickly and effectively manage the extreme thermal energy, gases and high velocity particles emitted from a cell in thermal runaway.

While thermal runaway events remain rare in deployed Electric Vehicle (EV) and Battery Energy Storage System (BESS) platforms, passive safety components, such as cell-to-cell barriers and top-cover thermal vent blankets are vital to minimising their impact.

Battery Cell in Thermal Runaway

The Role of Thermal Vent Blankets

Thermal vent blankets, also known as module or pack covers, sit on top of the battery pack or module and often perform three core functions in a thermal runaway event:

1. Thermal Insulation: Prevent extreme heat from transferring to adjacent cells and passenger areas.

2. Mechanical Resistance: Resist and absorbs the kinetic blast force, burning gases and particles emitted from the burning battery cell.

3. Controlled Venting: Engineered rupture points in the vent blanket/cover control the release of thermal energy, gases and particles ensuring dissipation but preventing subsequent heat spread across the top of the pack/modules.

Whilst thermal vent blankets or covers are effective throughout the entire thermal runaway cell burn, they are especially critical in the first 15 seconds, when the kinetic release of pressure, gas, and particulate matter reaches peak intensity.

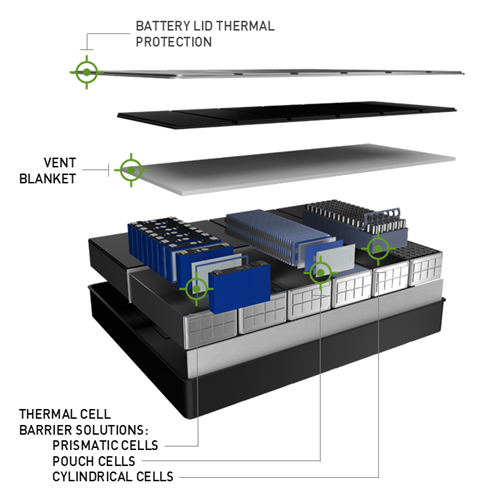

Thermal Runaway Battery Applications

Optimise Your Battery Pack For Safety, Performance and Cost

By engineering thermal vent blankets around your specific battery pack, we tailor material selection, component design, manufacturing processes and functionality to your exact requirements.

Depending on your module/pack design and safety and performance objectives, your ideal thermal vent pad/blanket could range from a single material component, such as a die-cut high temperature fiber paper for localised thermal protection, to multi-layer laminated components performing multiple functions including thermal insulation of the pack cover, thermal protection from heat spread and electrical isolation/dielectric resistance.

To deliver production-ready thermal vent blankets built to enhance your project, we leverage extensive experience in manufacturing thermal management components for global OEMs and Tier 1 suppliers:

  • End-To-End Support: We partner directly with your engineering team, at any stage of development, to translate your performance requirements into high-volume components.
  • Battery Pack Specific Functionality: Single or multiple layers of advanced materials engineered to deliver the exact functionality and performance.
  • Designed for Efficient Assembly: Custom formats, tight tolerances, and integrated assembly aids facilitate rapid line integration and high-speed assembly.
  • Proven Manufacturing Partner: Developed at our IATF 16949-certified facility our thermal management solutions are built to meet rigorous safety standards and have been adopted across electric vehicle ranges.

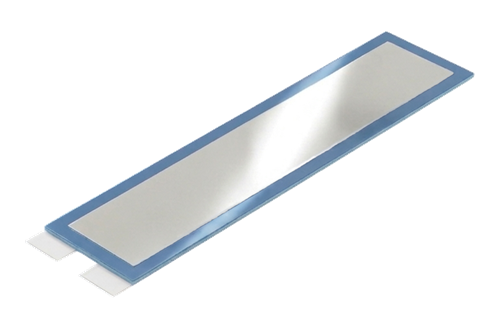

Assembled diagram of a Thermal Vent Blanket

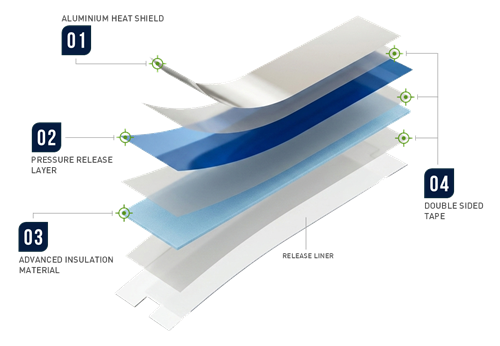

Blown apart diagram of a Tecman Thermal Vent Blanket





Discuss Your Thermal Vent Blanket Requirements with Tecman

Whether you are refining an existing pack or starting a new development cycle, early collaboration ensures your passive thermal protection components meet the unique requirements of your battery pack and deliver project success.

Contact our technical team today to start developing your bespoke thermal vent blanket for high-volume manufacture with Tecman.

Discuss your application with Tecman

Advanced Thermal Management Solutions for Battery Development

Case Study: Advanced Thermal Cell Barrier

Case Study: Advanced Thermal Cell Barrier for EV Battery Packs

A concept-to-manufacture solution for a major automotive OEM to delay thermal propagation in EV batt…

Learn more

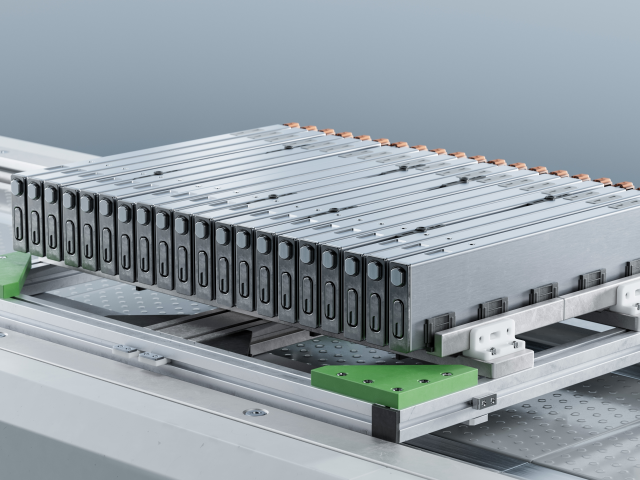

Case Study: Nearshoring a Battery Component to Europe
