Thermal Interface Materials (TIM)
We work with Sekisui thermal interface materials to develop advanced thermal transfer solutions supplied as die-cut pads or liquid systems. These highly conductive pads and liquid products are used in Li-ion battery systems for superior transfer of thermal energy between cells, components and thermal management units.
Thermal Interface Materials (TIM)
Superior transfer of thermal energy
Thermal Interface Materials (TIM)
Key Features
Thermal Interface Materials (TIM)
THERMAL
- Advanced thermal transfer interface materials
- Allow multi-directional transfer of thermal energy for heating and cooling

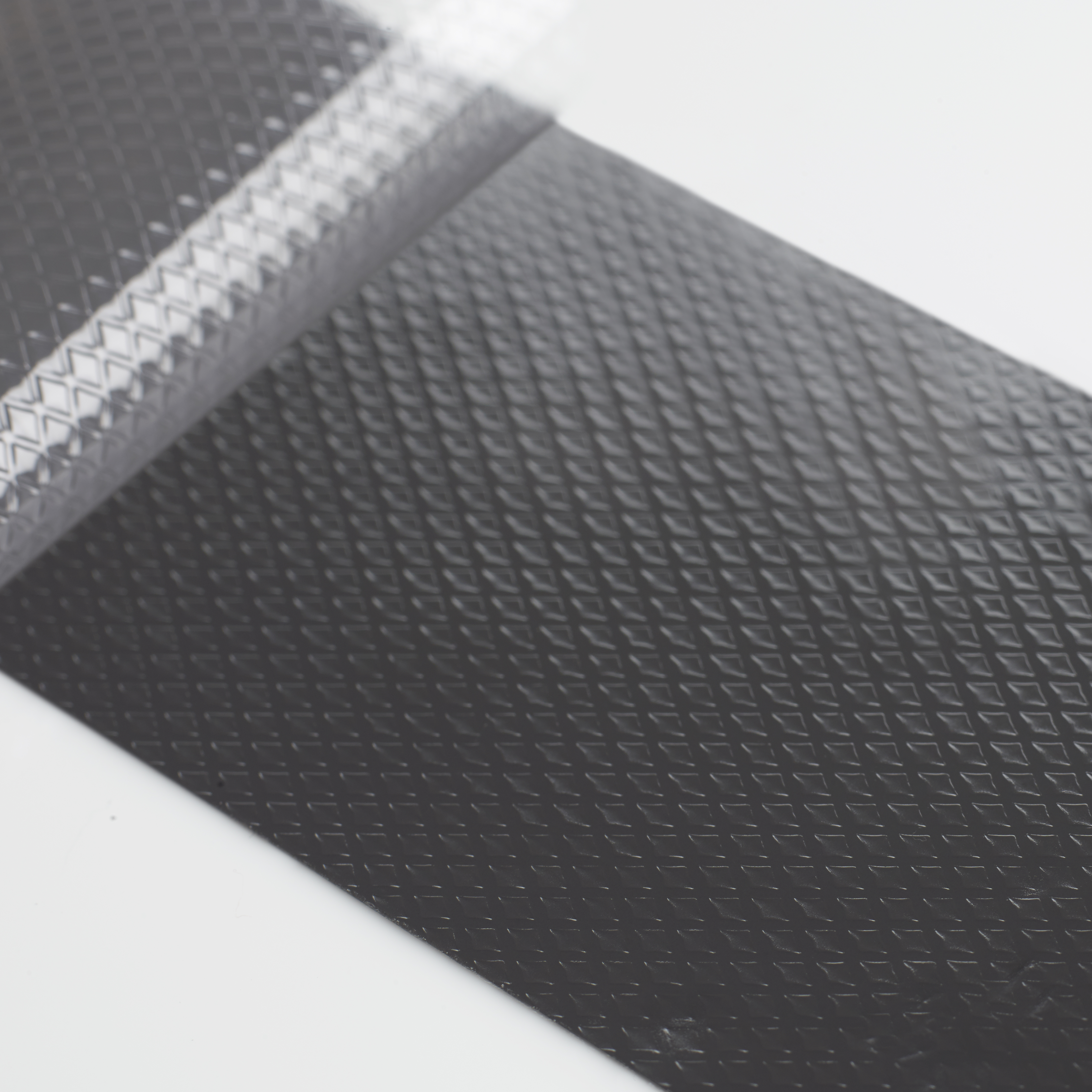

- Available as die-cut pads or liquid systems
- Provide a thermal transfer path between battery components
- Used in lithium-ion battery systems for transfer of thermal energy between cells, components and thermal management units.
Technical Specifications
THERMAL INTERFACE MATERIALS
Advanced thermal transfer interface materials allow multi-directional transfer of thermal energy for heating and cooling.
| Technical Data | Gap Filler Liquids | Thermally Conductive Pads |
| Thermal conductivity (ASTMD5470) | 2.0 to 6.0 W/mK | 1.4 to 35 W/mK |
| Hardness (Shore 00) | 5 to 55 | 20 to 75 |
| Specific Gravity | 1.95 to 3.44 g/cc | 1.8 to 3.3 g/cc |
| Electrically insulating | > 10 kV/mm | N/a |
| Breakdown strength (ACKV/mm) | N/a | < 0.1 to > 10 kV/mm |
| Thickness (mm) | N/a | 0.2 to 7.0 |
| Operating temperature | -40°C to 150°C | -40°C to 150°C |
| Base material | N/a | Silicone |
| Siloxane out gas(D4-D10) | < 70ppm | < 70ppm |
